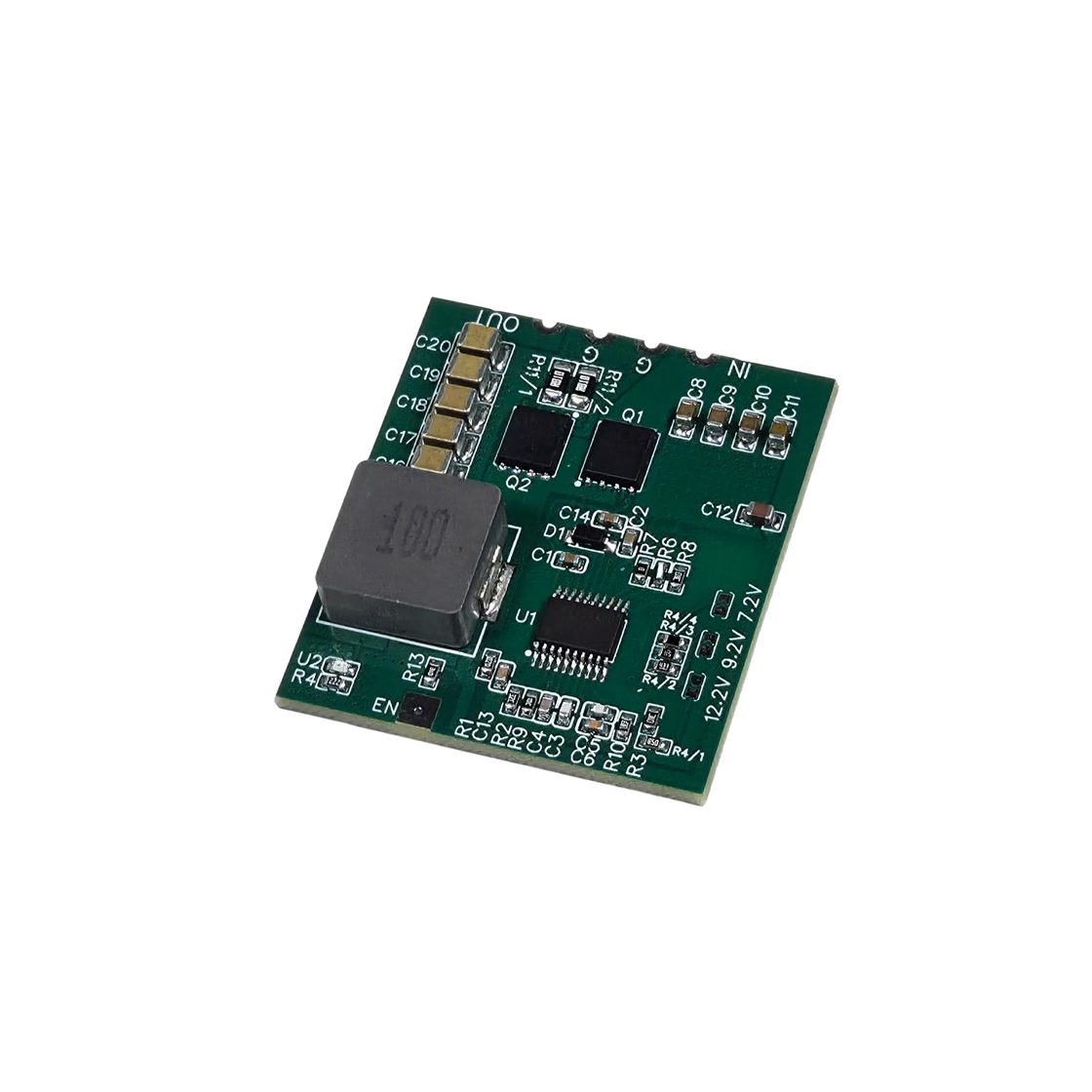

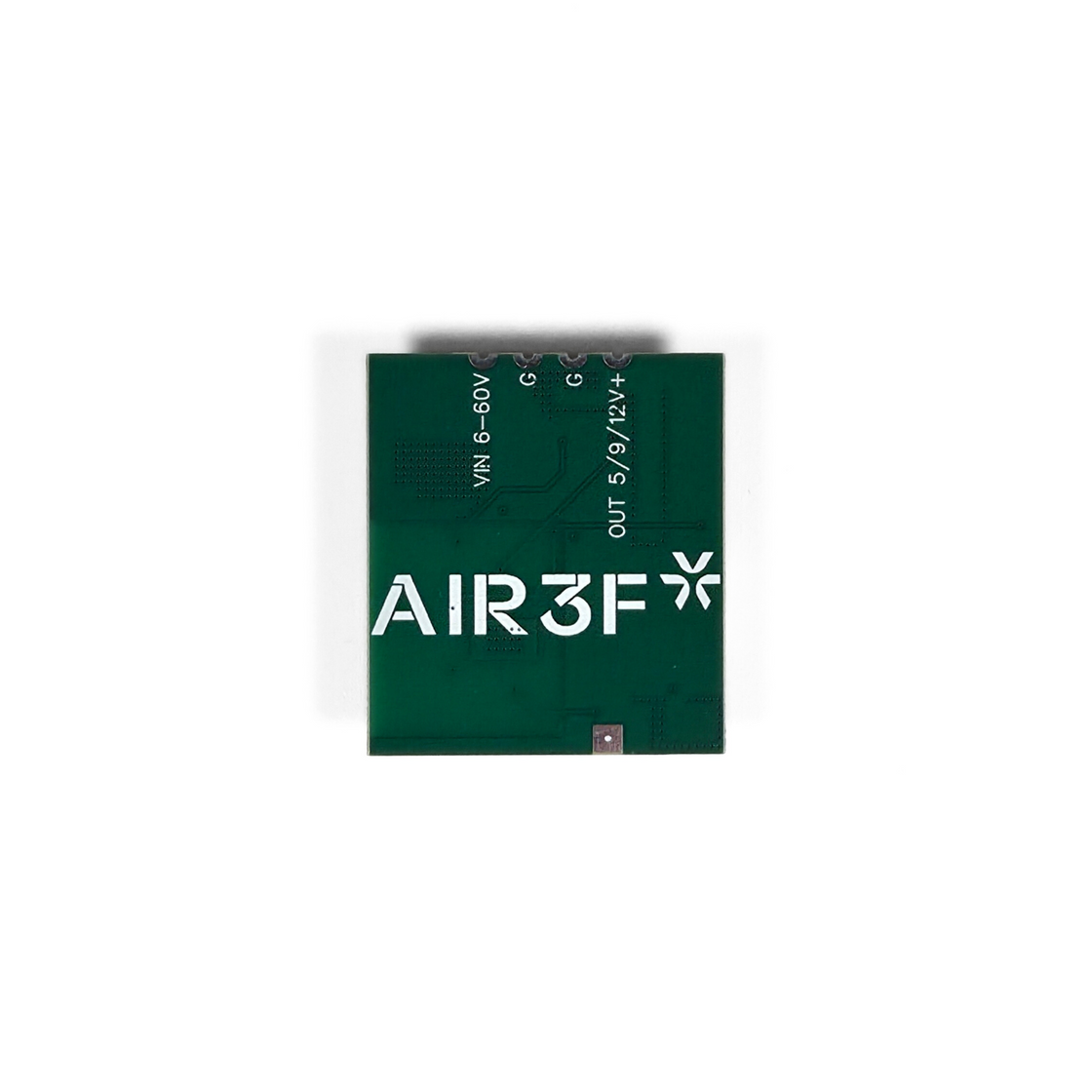

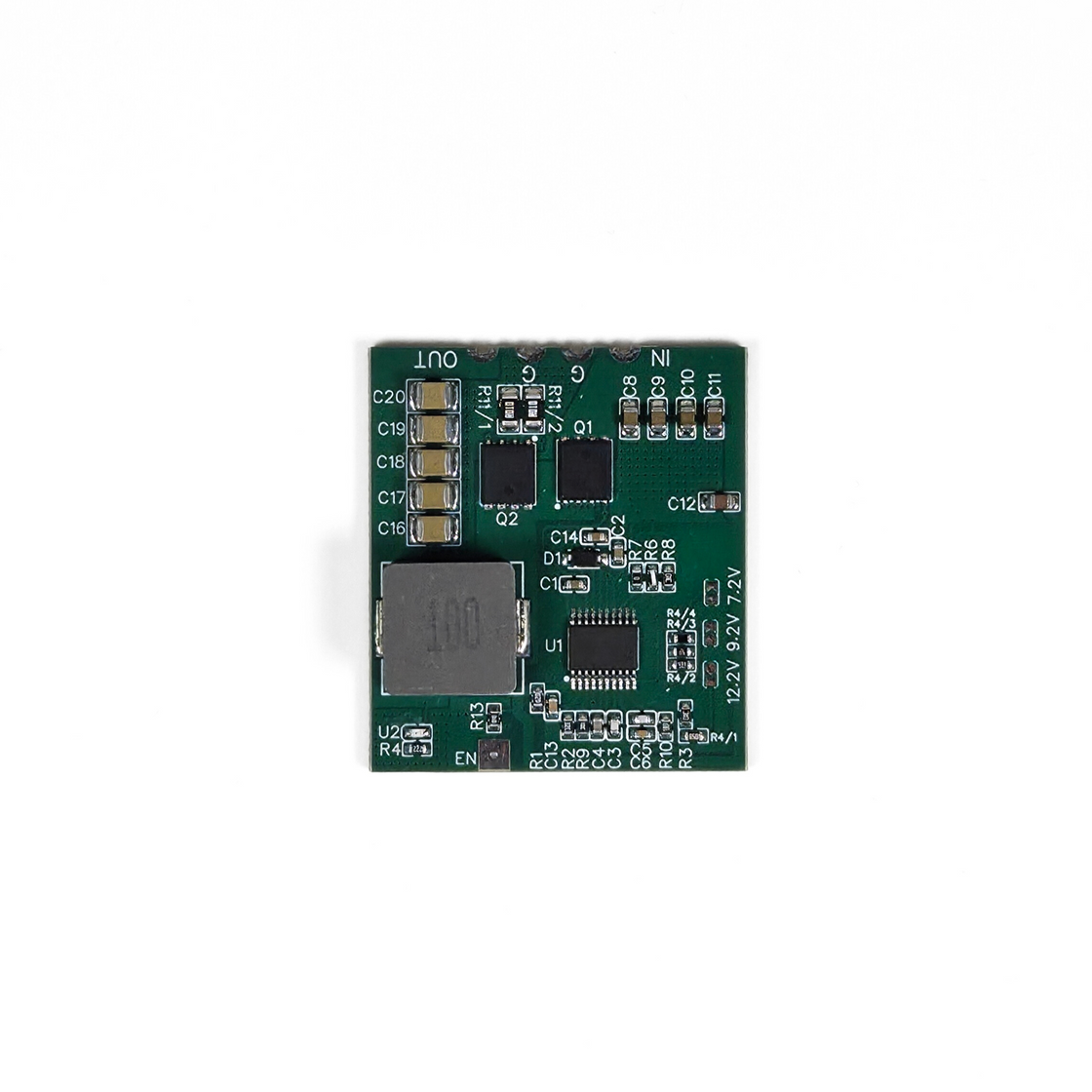

DescriptionEngineered to deliver stable power to drone avionics, autopilots, and onboard electronics. Module provides a reliable 5 A continuous current with up to 6 A peak output, featuring configurable output voltage levels.
Its compact footprint and optimized PCB design enable seamless integration into any project layout. Equipped with LED status indicators and integrated circuit protection to guarantee safe, stable performance. Fully compatible with Raspberry Pi power requirements.
800 UAH
Price excluding VATSpecifications
Input specifications
Input voltage
12–60 V
Type
switching (Switch-Mode)
Output specifications
Output voltage
5 V (default)7.2 V
9.2 V
12 V Output current nominal: 5 А
peak: 6 А Voltage control interface software-controlled via PinIO
Physical specifications
Dimensions (L × W × H)
41 × 36 × 7.5 mm
Weight
13.4 g
Package contents
BEC 5A board
Key Features
Reliable output voltage regulation across a broad input supply range.
Configurable output levels for diverse device requirements.
Space-saving design optimized for high-density layouts.
Built for reliable hardware integration into any onboard system.
