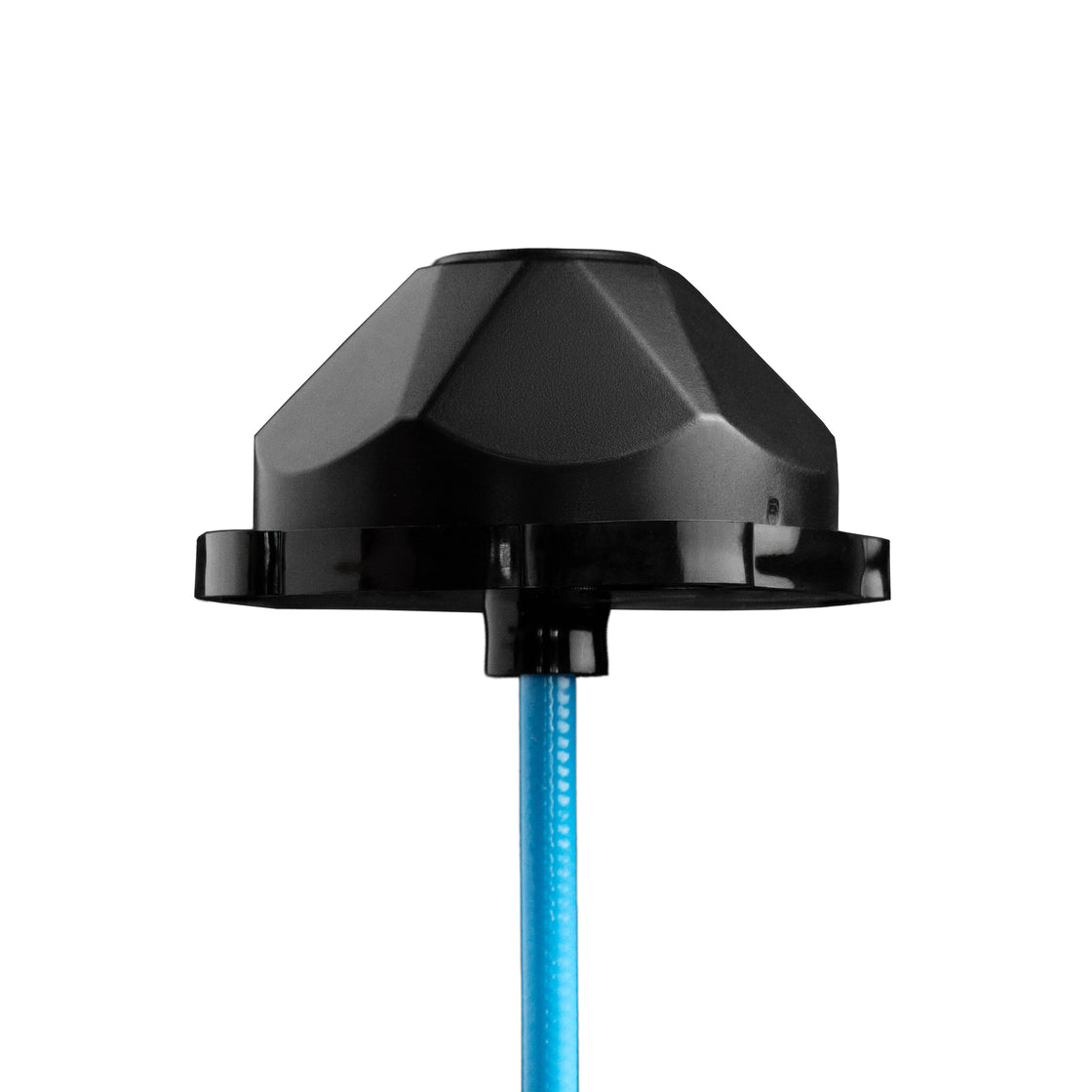

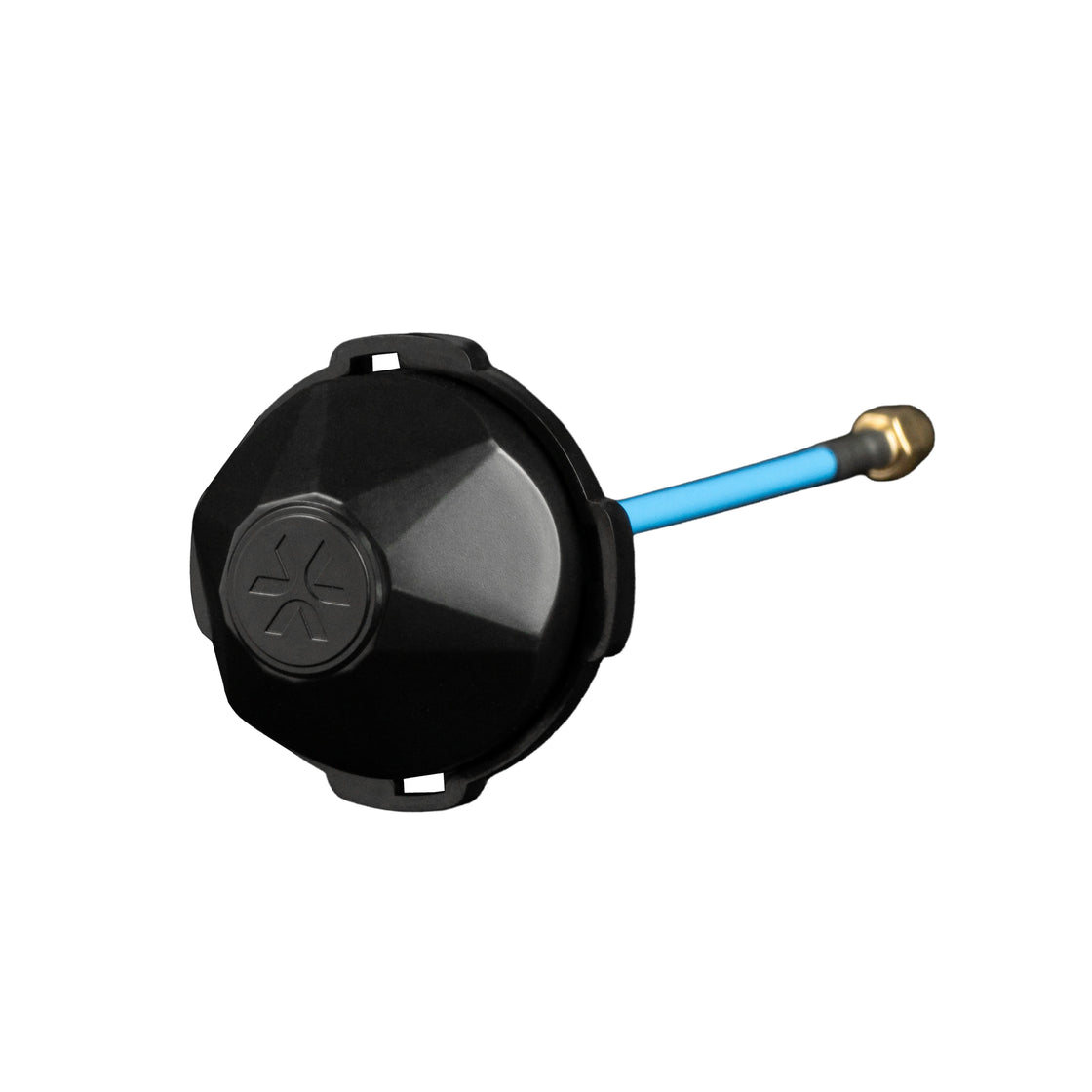

5.3–5.95 GHz Cloverleaf antenna
5.3–5.95 GHz Cloverleaf antenna
DescriptionOmnidirectional, circularly polarized antenna with 4 dBi gain for reliable short- to mid-range signal transmission and reception. Complete orientation independence ensures a stable link during dynamic operations. The compact, lightweight chassis enables easy installation on FPV drones, tactical SIGINT/ESM units, and other platforms.
350 UAH
Price excluding VATSpecifications
Frequency range
5.3–5.95 GHz
Type
cloverleaf antenna

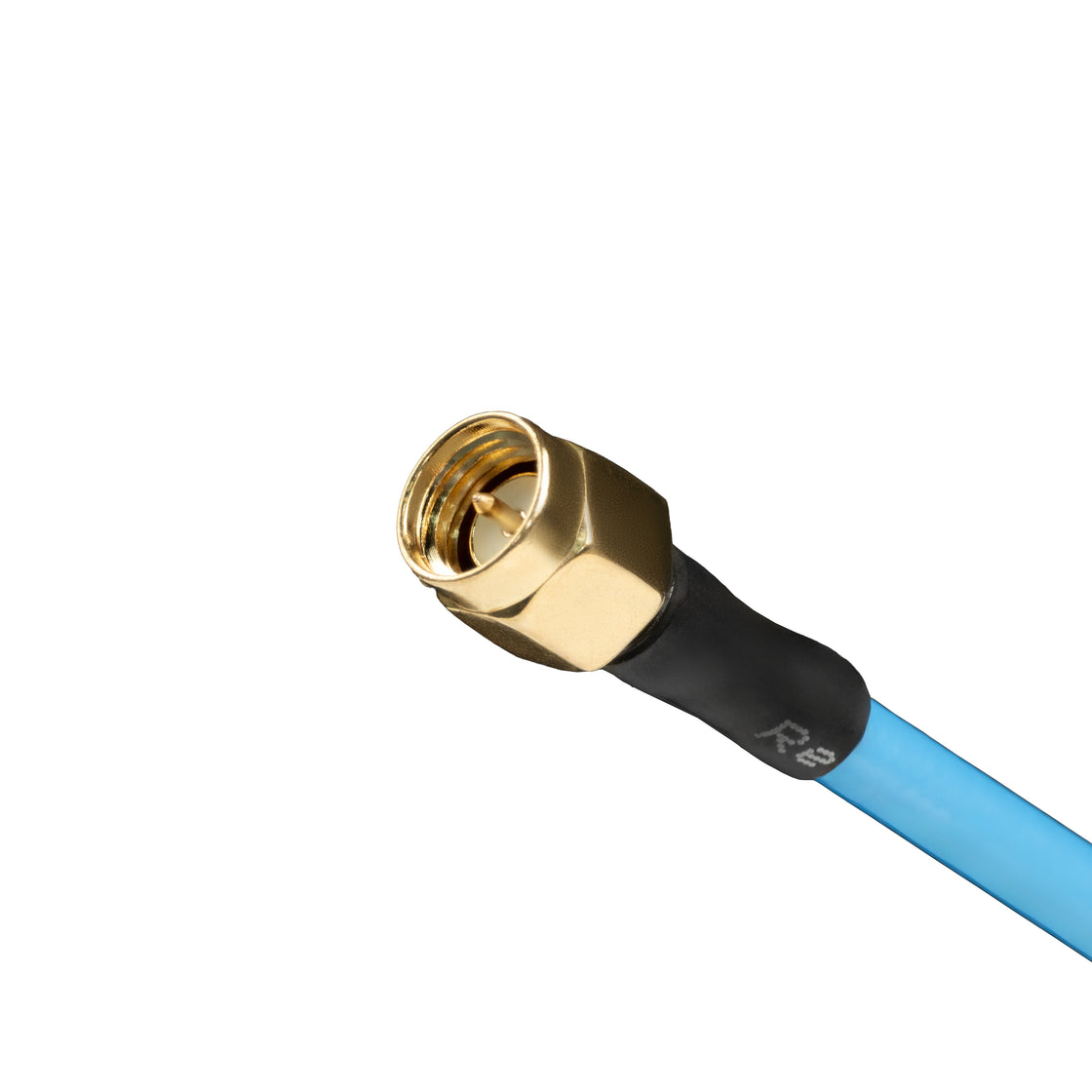

Connector type
SMA-Male
RP-SMA-Male Polarization LHCP
RHCP Gain 4 dBi Beamwidth 360° / 180° Dimensions (⌀ × H) ⌀53 × 150 mm Weight 16 g Application video feed RX/TX Housing material plastic
RP-SMA-Male Polarization LHCP
RHCP Gain 4 dBi Beamwidth 360° / 180° Dimensions (⌀ × H) ⌀53 × 150 mm Weight 16 g Application video feed RX/TX Housing material plastic
Key Features
Available with various connector types
Maintains video quality during in-flight maneuvering
Rugged design built for daily operational use
Available across multiple frequency bands
